I bought this kit from eBay. This kit came from China, it took about 2 weeks to arrive after complete payment. It is also very cheap. Let’s see what is inside the package.

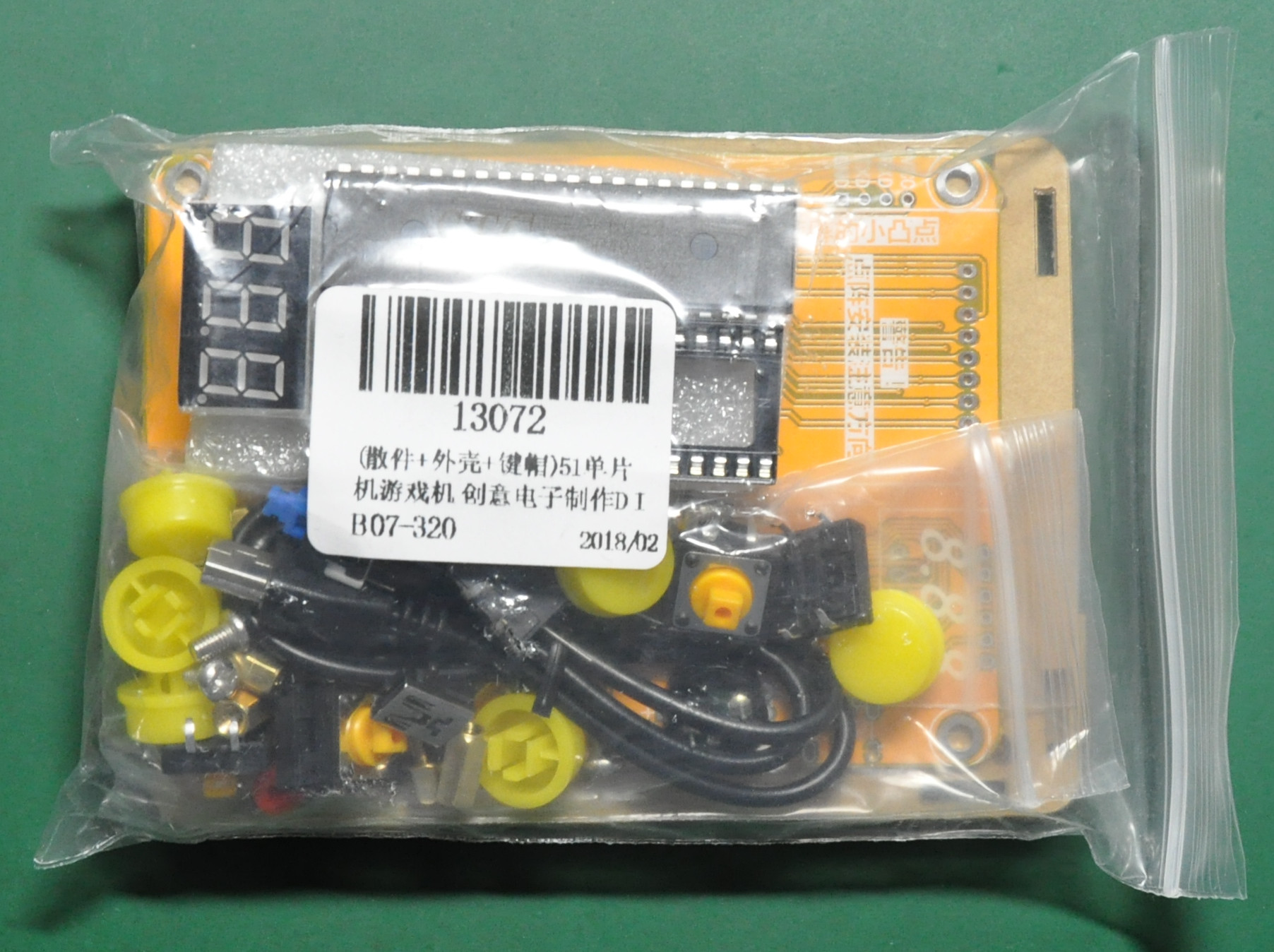

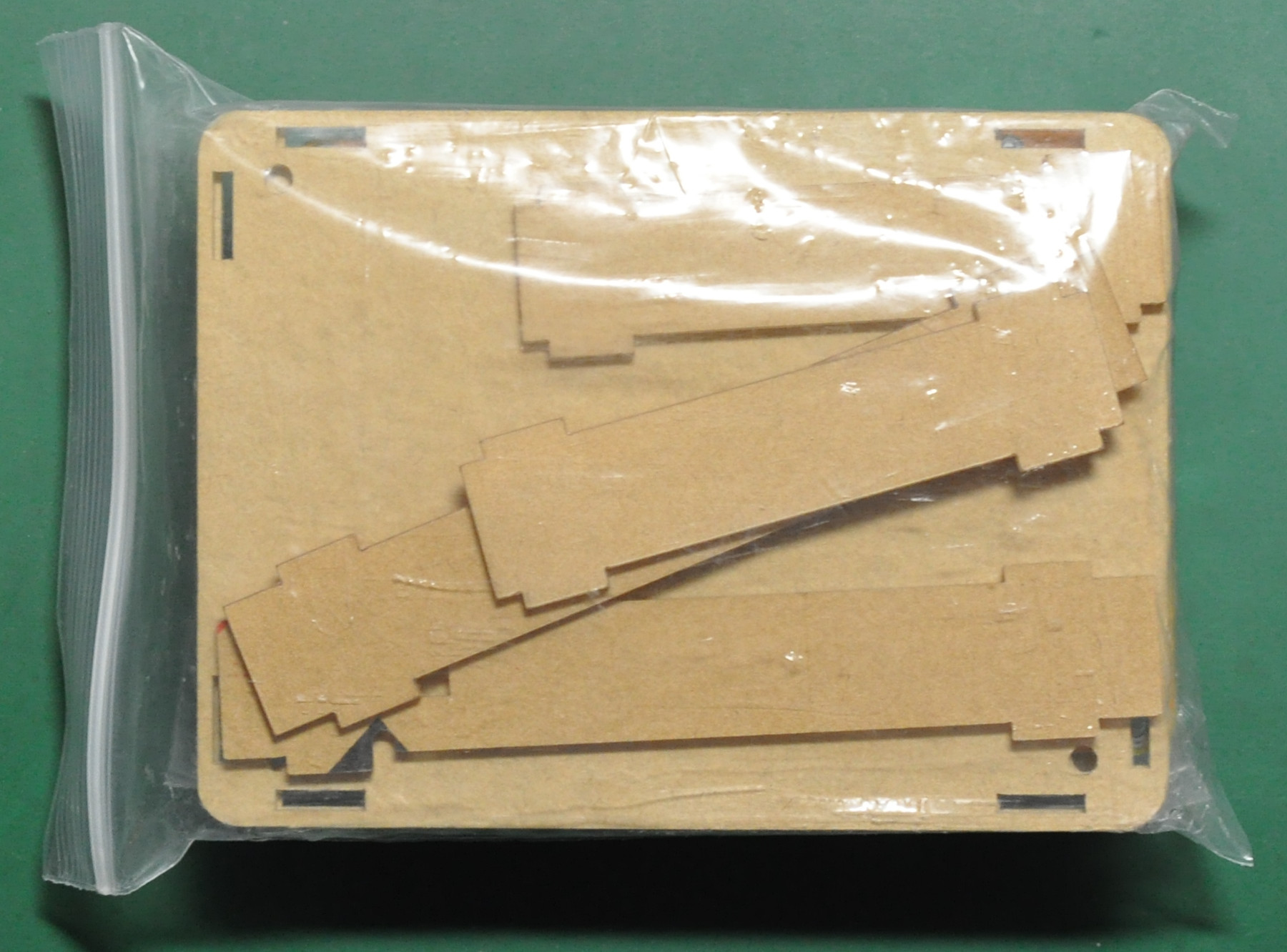

The package arrived as above, well packed.

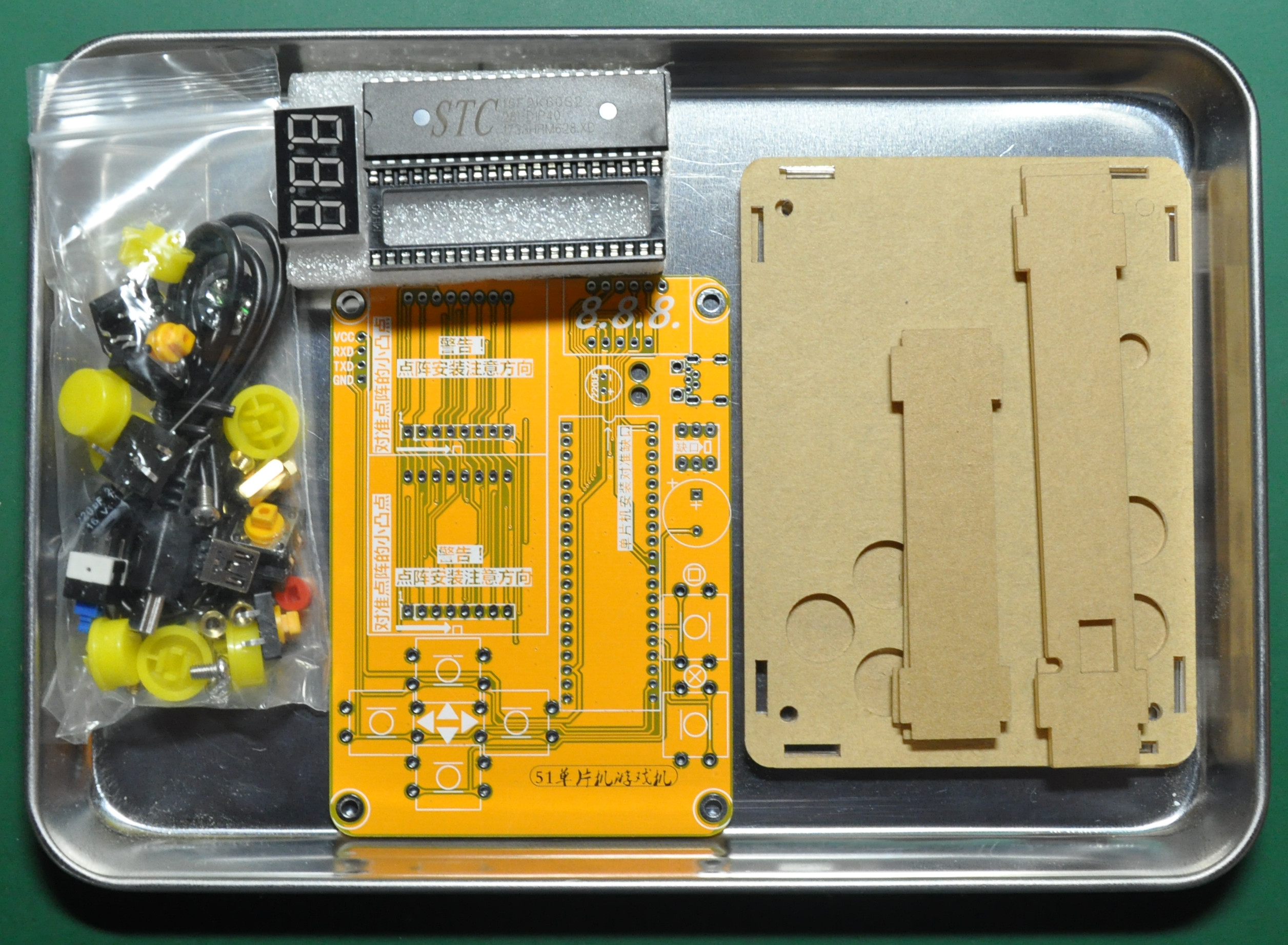

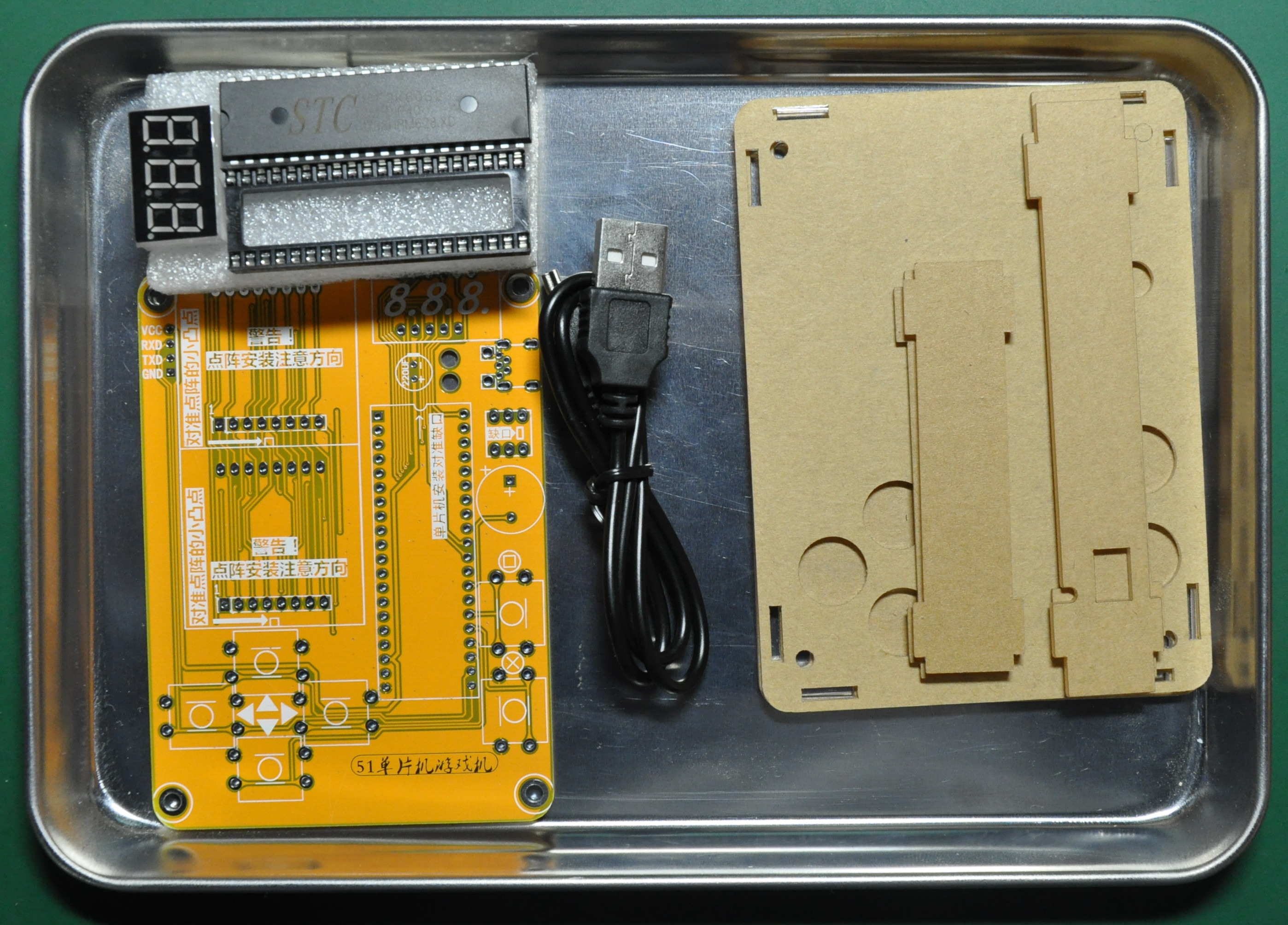

Those are the parts after unboxing. Let’s separate up the parts to check the components in detail.

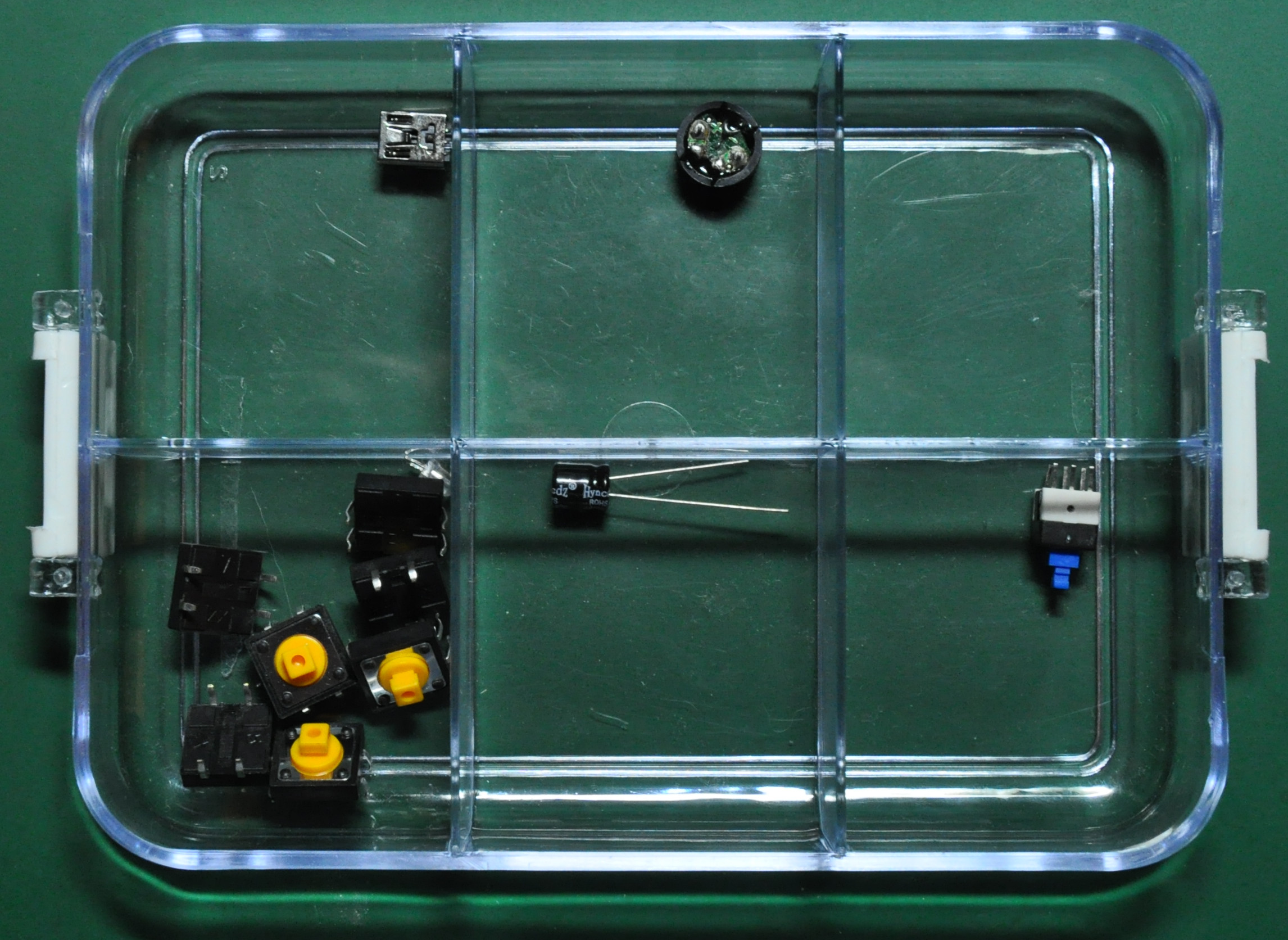

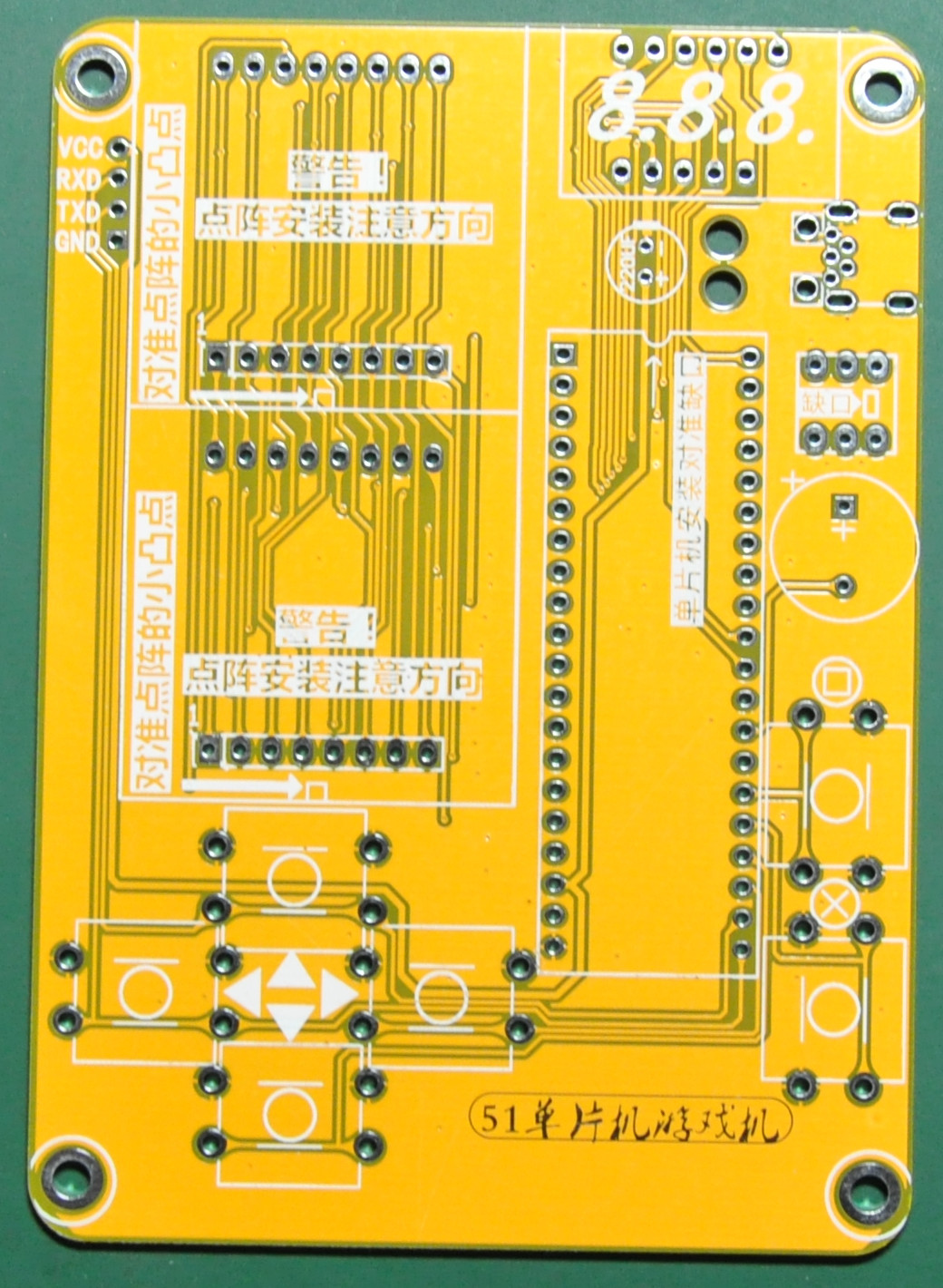

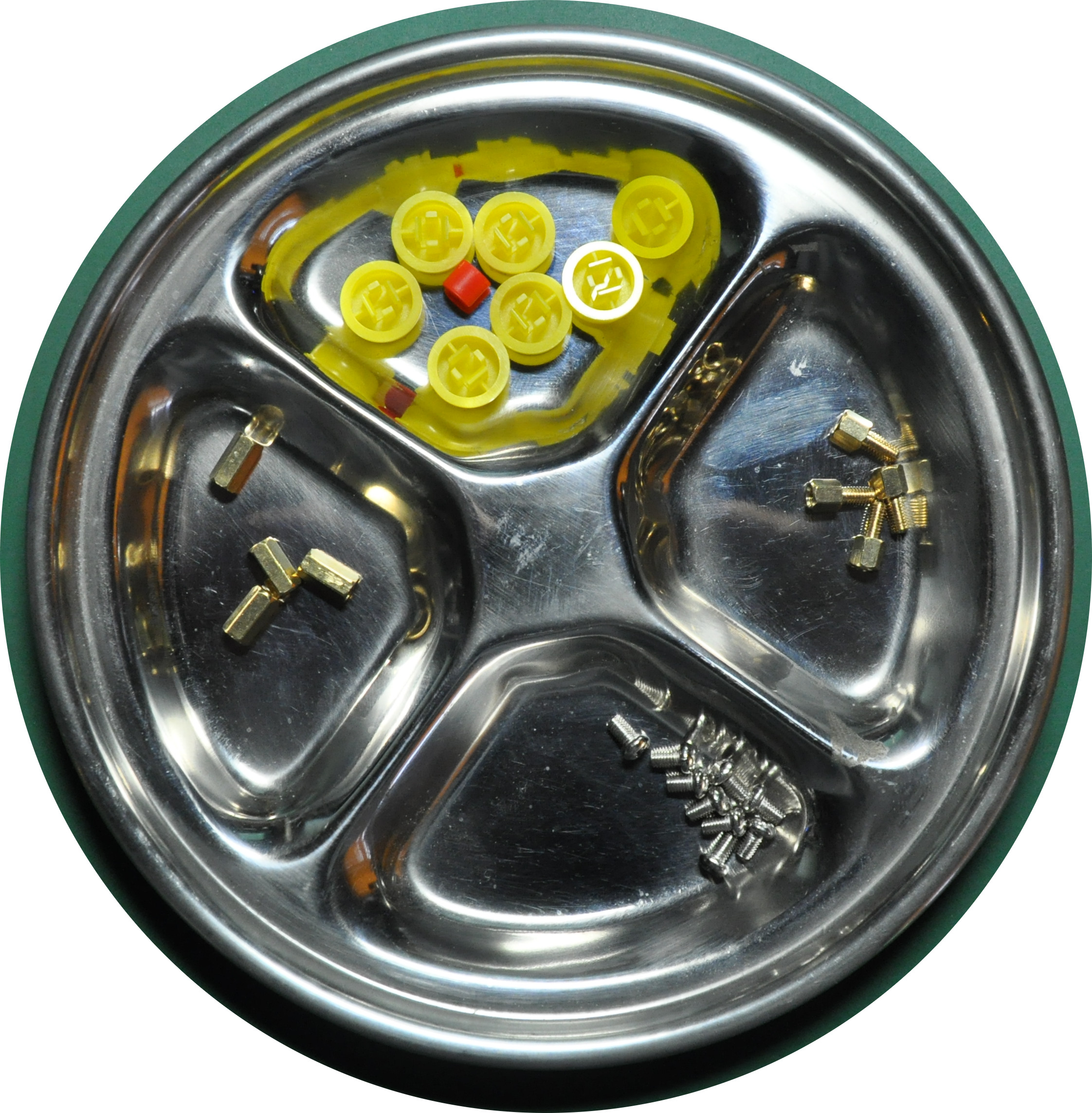

Those are the components included. I have checked all those components and parts, it looks like everything is here and there is no missing parts or components. So lets take a look at the pcb.

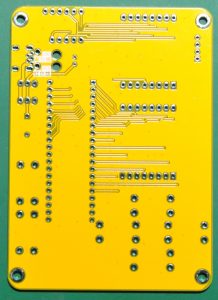

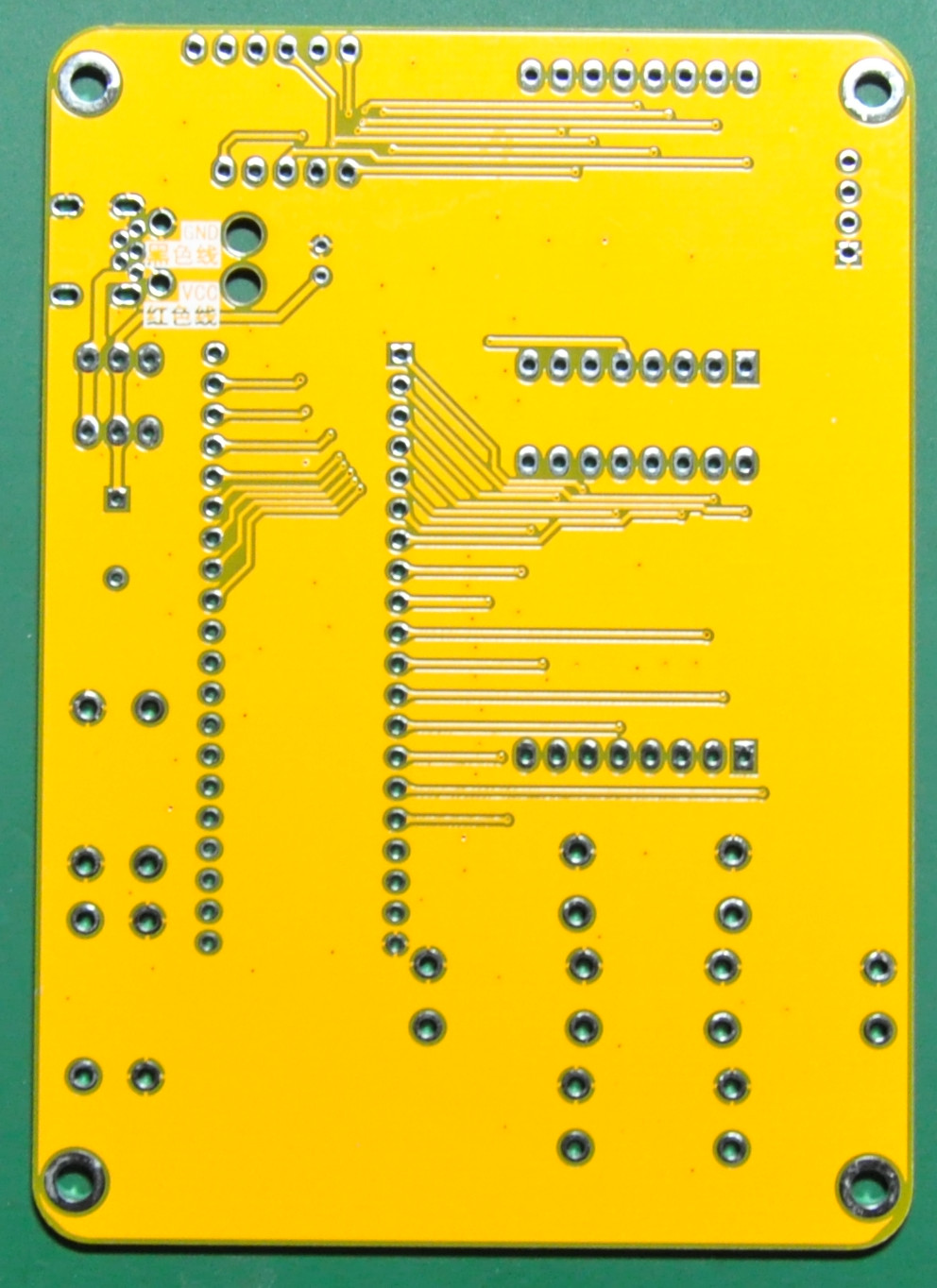

The quality of the pcb is very good and thick compared to ordinary pcb included in other kits like this.
Let’s start put all the parts and components together.

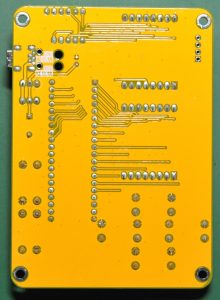

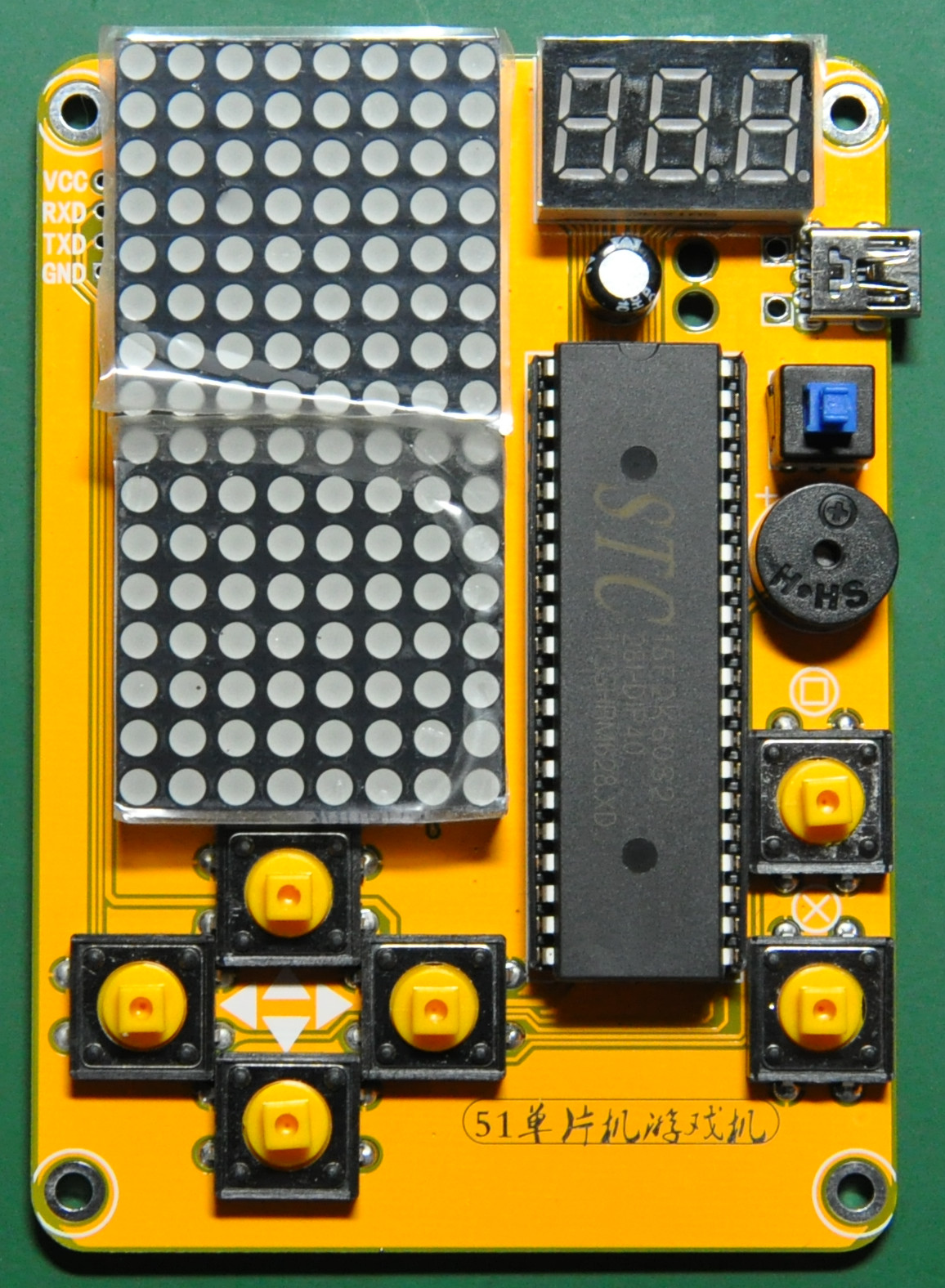

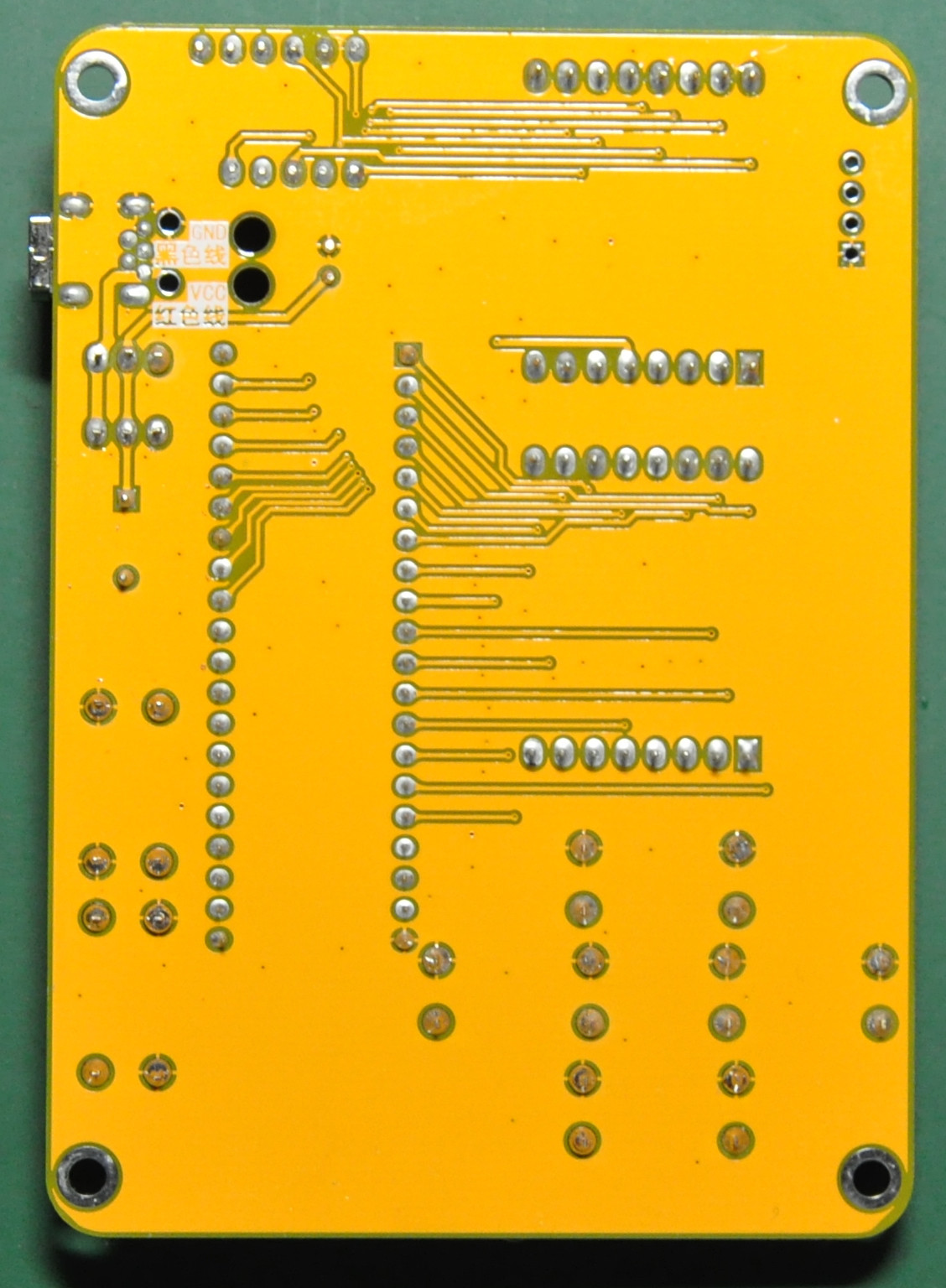

Those are the finished board. Looks pretty and nice ! Now it’s time to put the case.

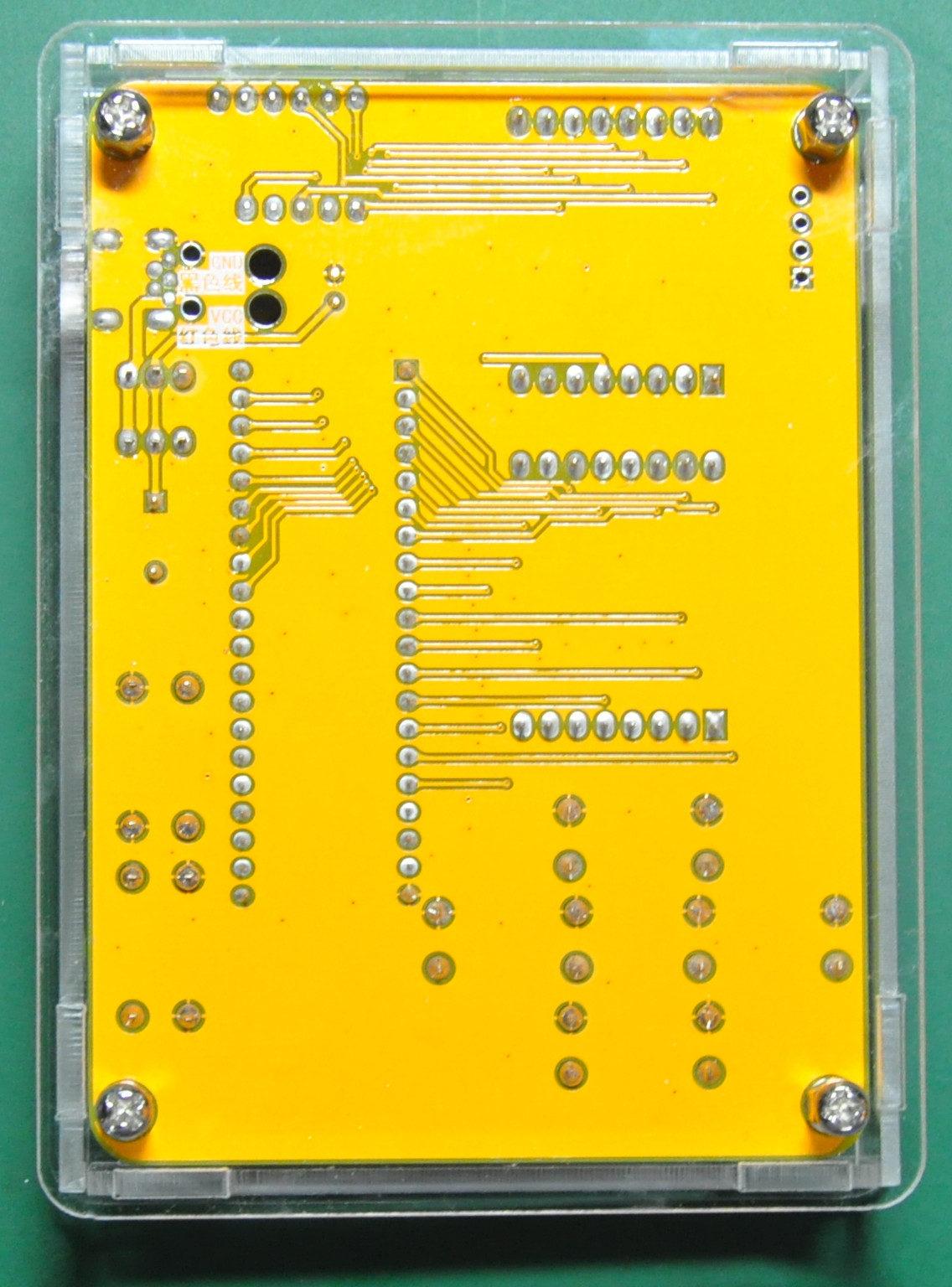

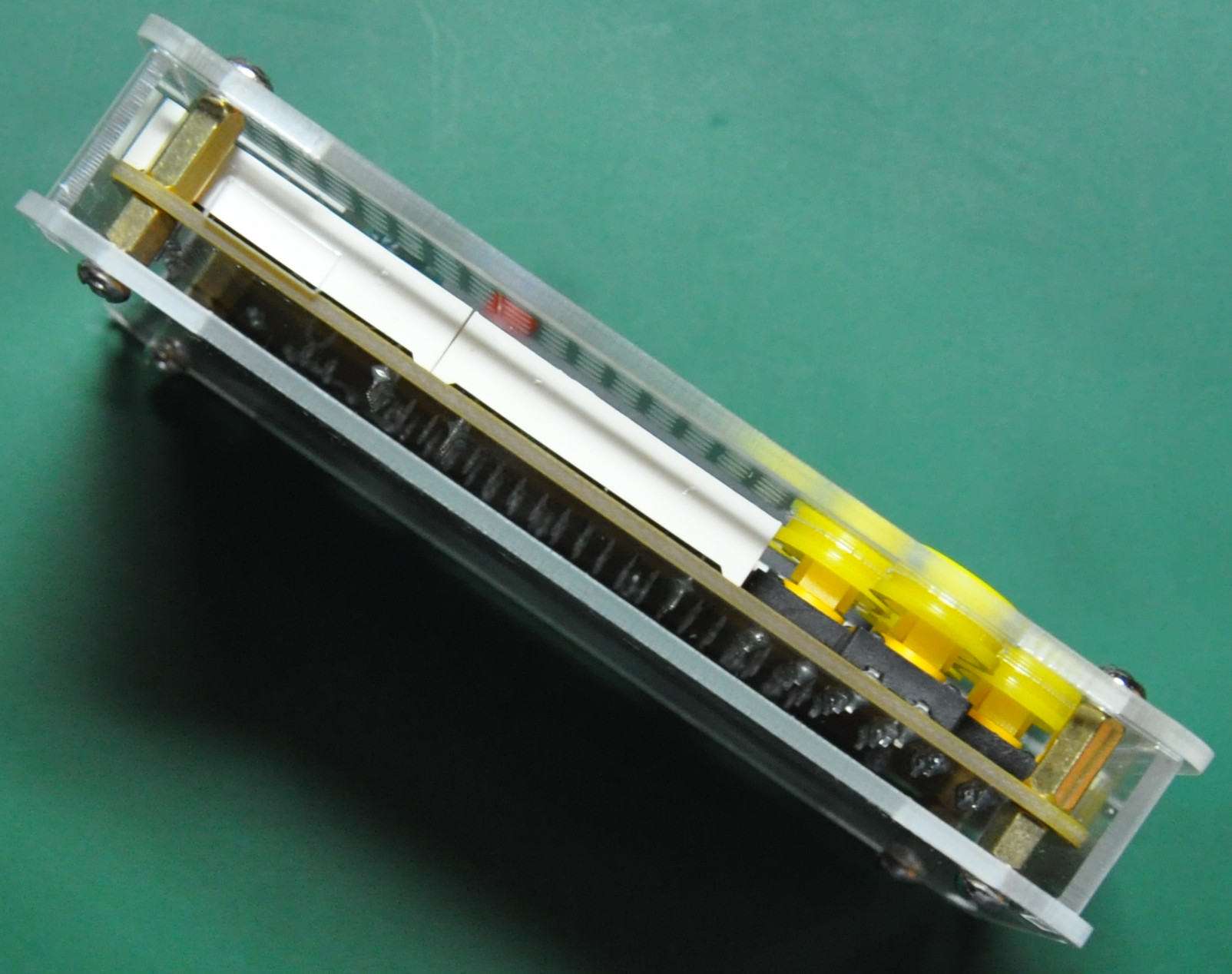

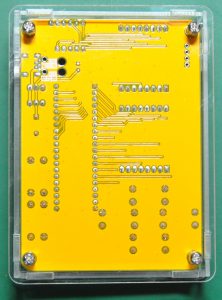

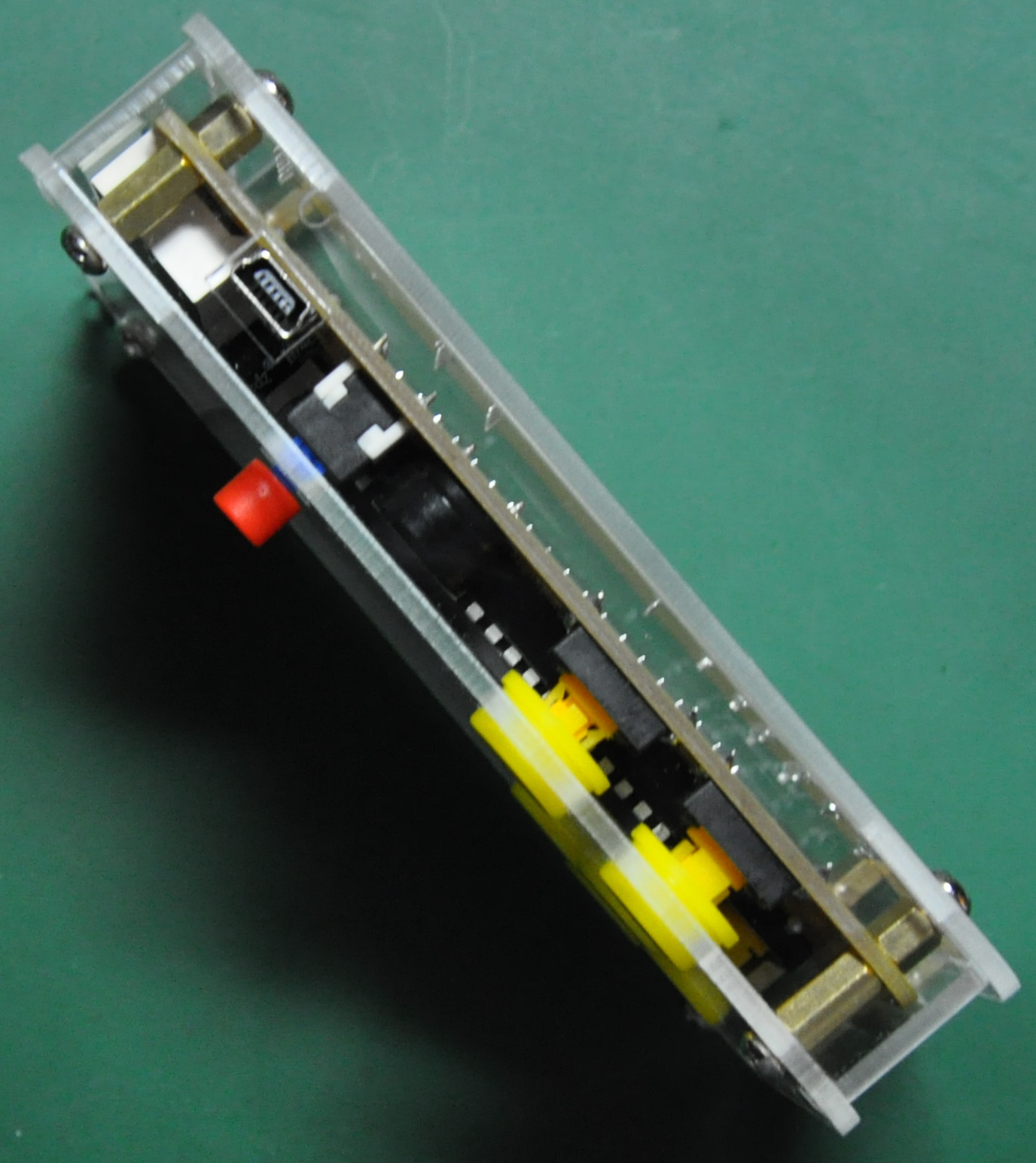

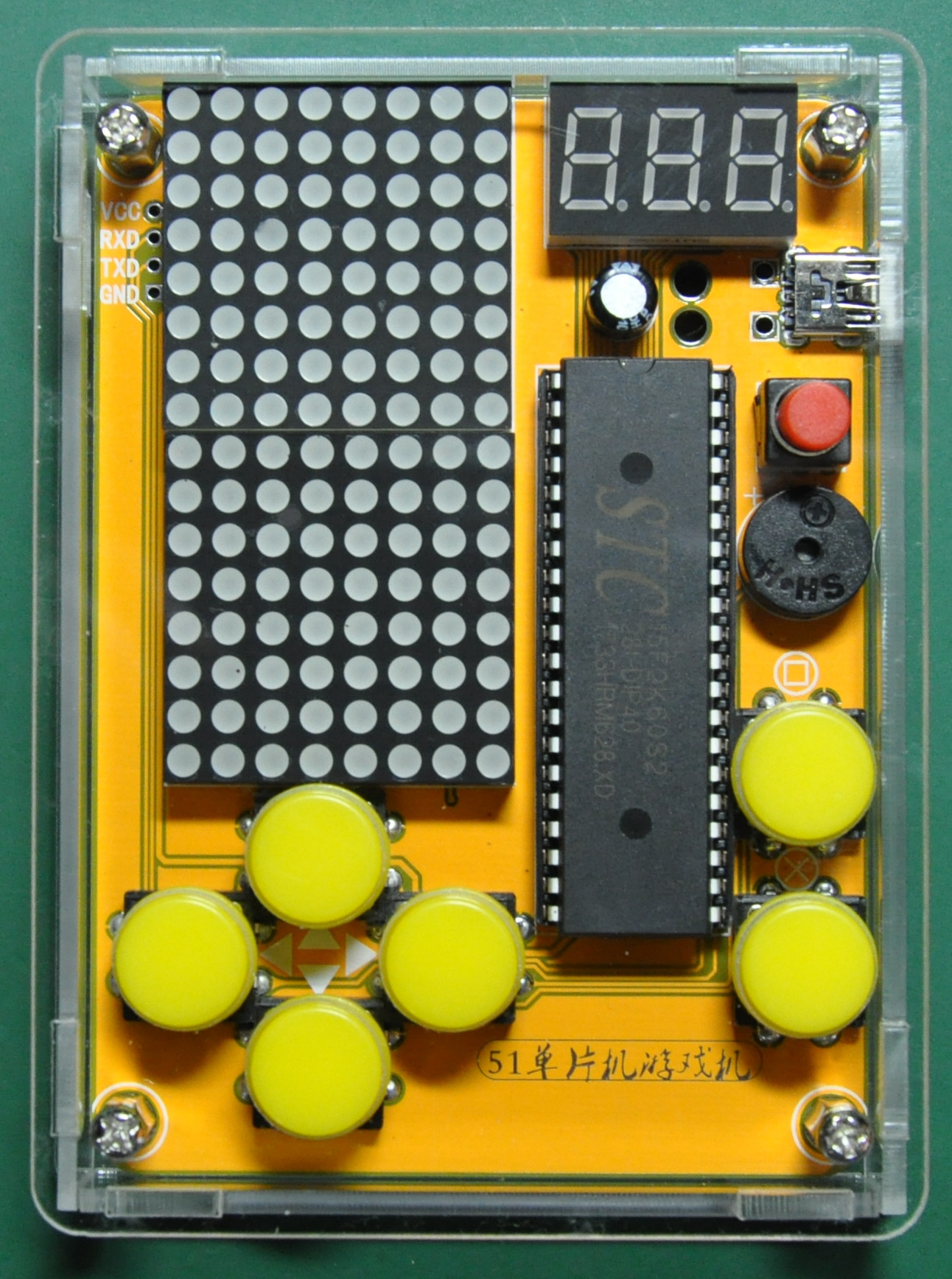

Here is the finished product. The case is well designed and fit nicely. Now it’s time to make some tests.

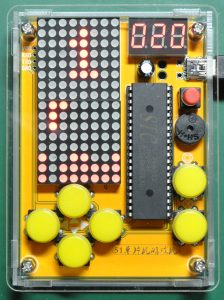

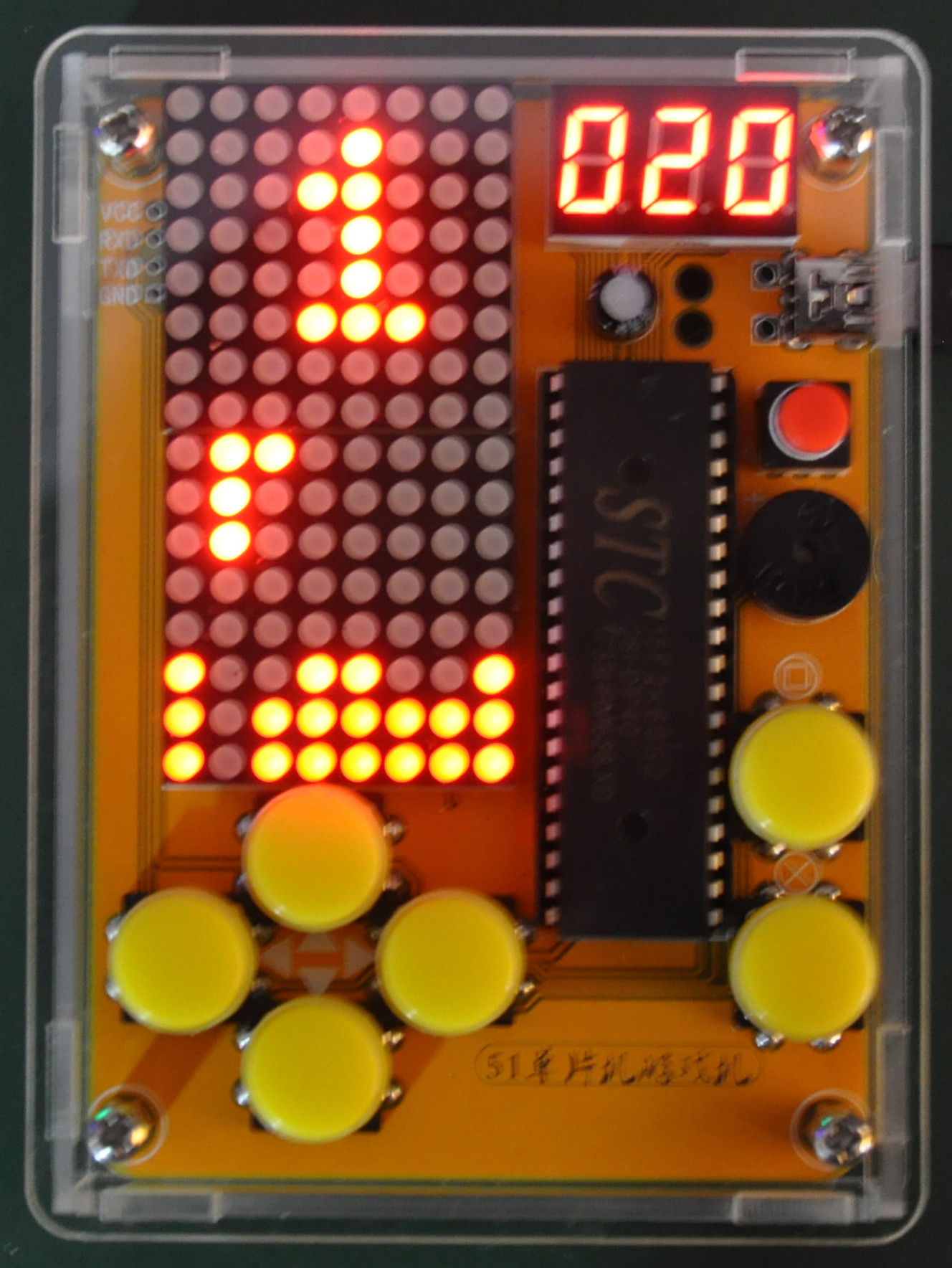

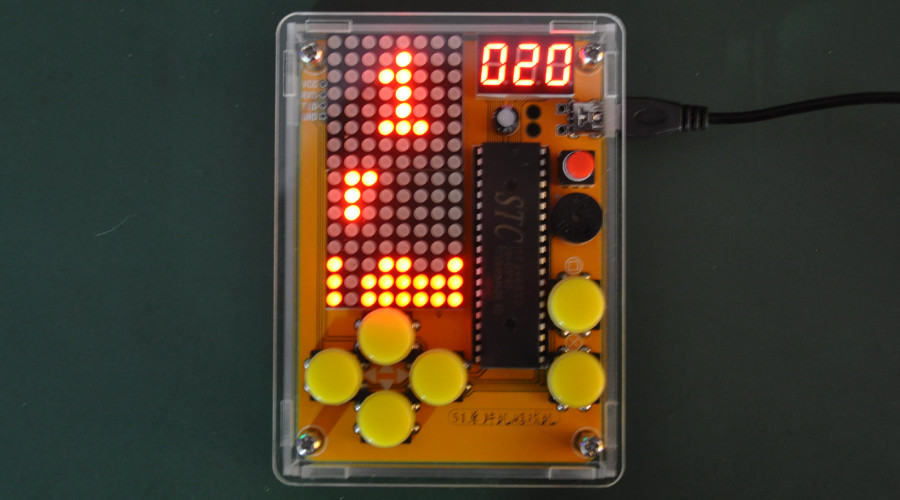

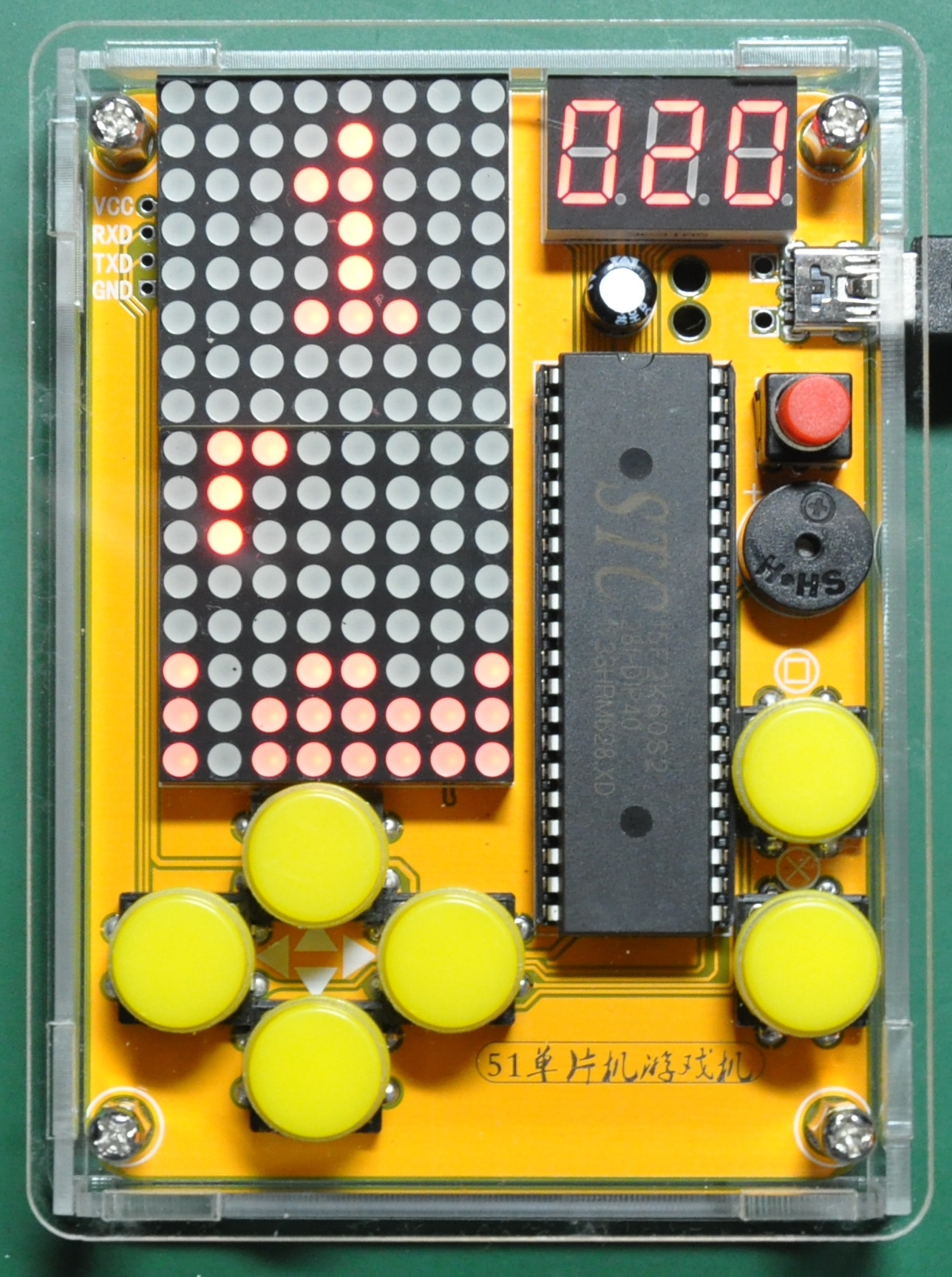

Here is the pictures while I’m testing the kit. It is difficult to see the led in bright environment but it looks nice in the dark. I think by putting some mask over the led display will make easier to use in bright environment.
Overall, I think it is a very nice kit, good for soldering practice and for electronics learning. I think I will try to reprogram the chip in the future to make my own firmware with this kit. Look forward to see more kits like this in the future.
P/S : I like to play Tetris with this kit !
